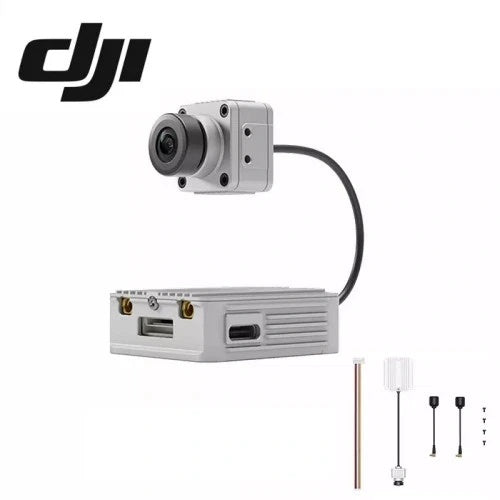

Original DJI FPV Air Unit with Camera

Key Features

1. Revolutionary Digital HD Video

Crystal Clear Feed: Transmitted a live 720p/120fps or 1080p/60fps video feed to the goggles, a massive leap from the standard-definition, often snowy analog video.

High Dynamic Range (HDR): Provided better detail in both shadows and highlights compared to analog, making it easier to see in challenging lighting conditions.

2. DJI's OcuSync 2.0 Transmission Technology

Low Latency: Achieved an end-to-end latency of under 28ms, which was competitive enough for professional racing and freestyle flying.

Long Range & Stability: Offered a robust and stable video link up to 4 km (FCC standard, actual range varies with environment), far surpassing typical analog range without static.

Dual-Frequency Auto-Switching: Operated on both 2.4 GHz and 5.8 GHz bands, automatically switching to the clearest frequency to avoid interference.

3. Integrated Design

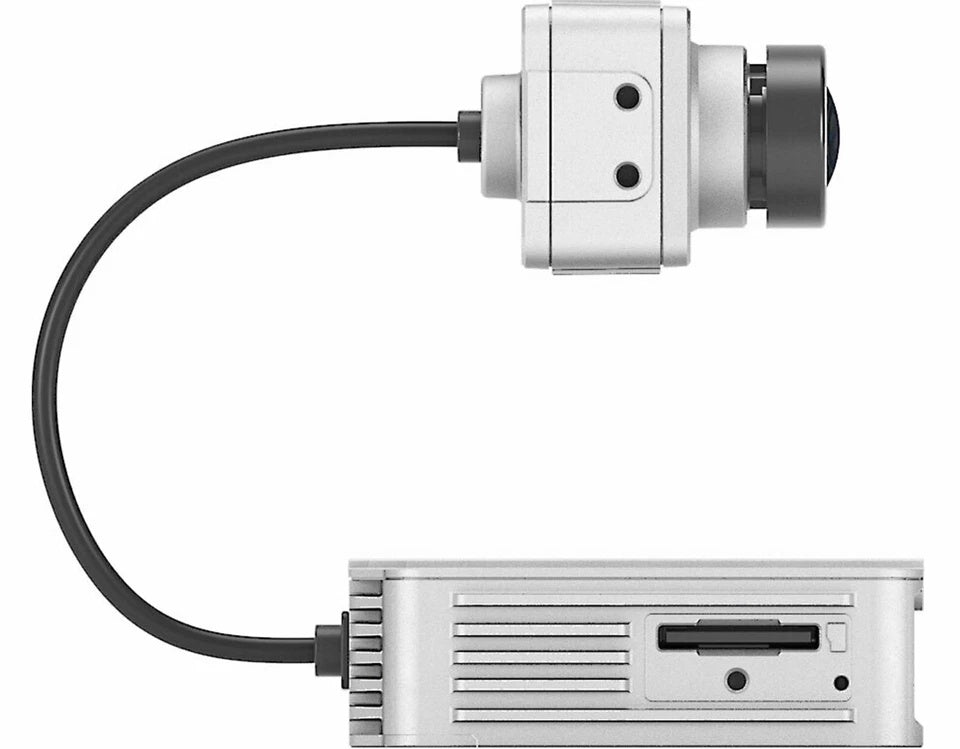

All-in-One Module: The Air Unit combined the video transmitter (VTX), camera, and onboard digital video recorder (DVR) into a single, compact module.

Onboard DVR: Could record the flight's HD video directly to a microSD card on the Air Unit itself, providing a clean, high-quality recording independent of the goggle's DVR.

Compatibility

• Required Goggles: DJI FPV Goggles (V1) or DJI FPV Goggles V2

• Supported Controller: DJI FPV Remote Controller (for control link via OcuSync)

• Flight Controllers: Compatible with most common flight controllers via SBUS or DJI's custom protocol. Supports custom OSD data overlay (e.g., battery voltage, RSSI).
